How do I manage the Pinch Outs points that do not show as pinch out segments and hence not editable?

TshepoJori

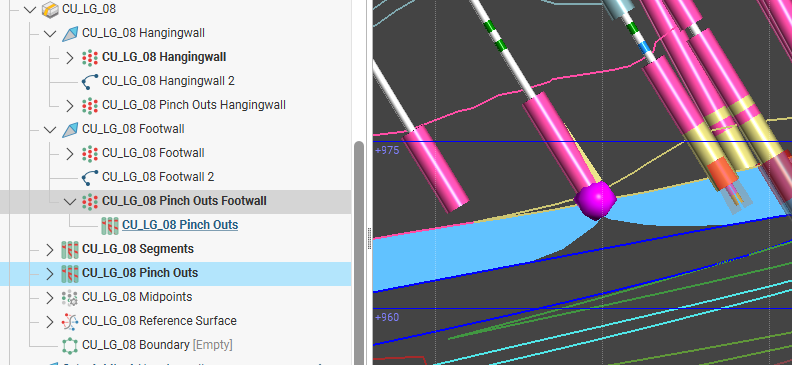

In this case, I have a footwall pinch-out point that is pulling the wireframe footwall surface up, resulting in volume loss.

GeorgeWhitehouse

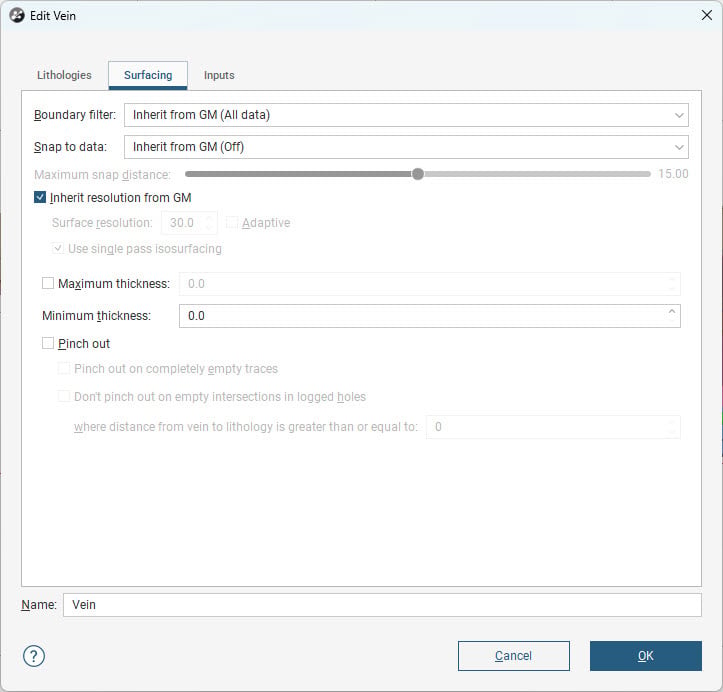

Have you tried experimenting with the pinch-out settings when you double-click on pinch-outs?

We also have this extract from our help pages that you might find useful:

Veins

The section covers a lot of detail on managing pinch outs, so hopefully it proves useful!

andrehanekom1

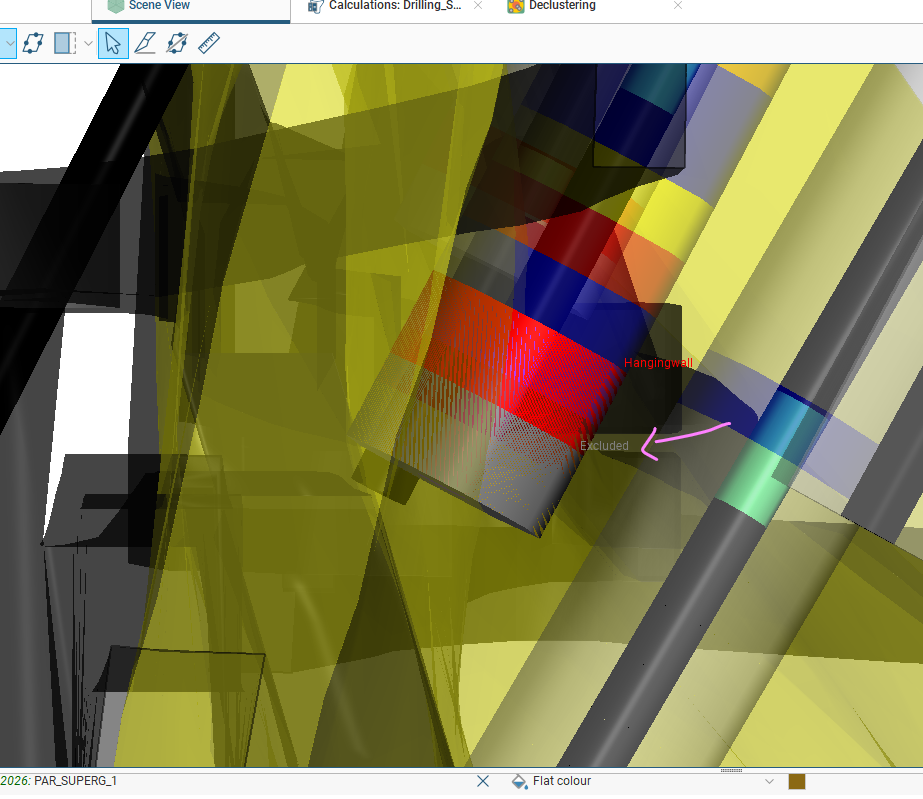

Load up the segments, and ignore the bottom one ( meaning exclude it) , then tit will be sorted.

andrehanekom1

its creating a HW / FW point….
