Polyline Attributes: modifying, and using for Vein FW/HW

NathanCronin1
NathanCronin1 Posts: 6 Corundum Rank Badge
edited February 2 in Leapfrog

I’m trying to use polylines that were sent to me to adjust some faults which have been modelled with the vein tool. There are a number of files which each contain polylines meant to adjust several faults. To make this easy, I’d like to use category selection to assign which polyline belongs to which fault and on those faults, which side (hanging wall or footwall).

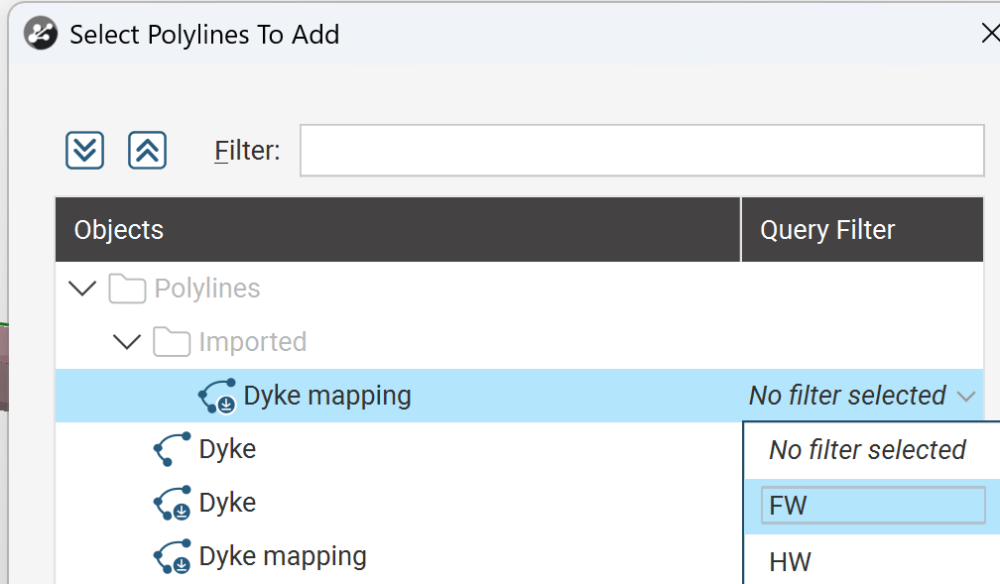

My issue is that there doesn’t seem to be a way to use a query filter when adding a polyline for a hangingwall or footwall in a vein . Am i missing a step or is there a work-around? (see crude marked-up screenshot below).

TIA

Tagged:

Answers

  • AmeliaOrmeno
    AmeliaOrmeno Posts: 6 Diamond Rank Badge

    Hi Nathan,

    The option to filter your polyline's attributes is available the first time you add it.


    You can try removing it and adding again.

    Cheers,

    Amelia O.

  • NathanCronin1
    NathanCronin1 Posts: 6 Corundum Rank Badge

    Thanks Amelia! Somehow missed that.
